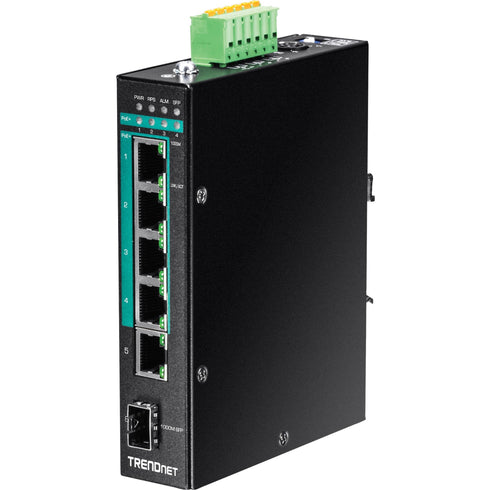

TRENDnet 6-Port Hardened Industrial Gigabit PoE+ Layer 2 Managed DIN-Rail Switch

TRENDnet's 6-Port Hardened Industrial Gigabit PoE+ Layer 2 Managed DIN-Rail Switch, model TI-PG541i, has four Gigabit PoE+ ports, one Gigabit port, one Gigabit SFP slot and a 120 Watts PoE budget. The switch is equipped with an IP30 rated metal enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate within a wide temperature range (- 40 - 70 °C (- 40 - 158 °F)) for harsh environments. L2 management include features such as PoE port control, VLAN, multicast, and QoS which allow for network integration flexibility.

Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 70 °C (- 40 - 158 °F)) for harsh environments.

Integration Flexibility
Managed features include PoE per port control/priority/scheduling/power delay, 802.1Q/MAC-based VLAN, IGMP snooping, per port bandwidth control/802.1p/DSCP/queue scheduling, and SNMP trap/RMON/SMTP alert/syslog/port mirror for monitoring and flexible network integration.

Fault Tolerance
Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure

• Lifetime Warranty
• Power supply sold separately (models: 48VDC3000 / TI-S24048 / TI-S12048)
• 802.1Q / MAC-Based VLAN and IGMP Snooping support
• 802.1p / DSCP / Queue Scheduling (SP/WFQ/WRR) QoS support
• CLI (Telnet), Web (HTTP), SNMP v1 / v2c management
• 120 Watts total power budget
• Dual redundant power inputs and alarm relay output
• 4 x Gigabit PoE+ (802.3at) ports, 1 x Gigabit port, and 1 x Gigabit SFP slot
• Wide operating temperature range - 40 to 75 °C (-40 to 167 °F)
• Hardened IP30 rated metal enclosure with integrated DIN-Rail mount
