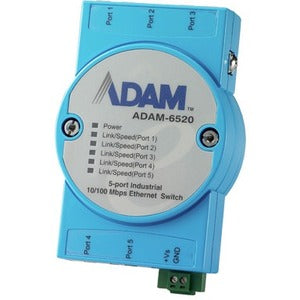

Advantech 5-port 10-100 Mbps Industrial Ethernet Switch
SKU: ETS5522639
VENDOR: Advantech Co., Ltd
$89.99
ADAM-6520 is a 5-port industrial-grade switch with Ethernet connectivity and from 10 to 100 Mbps transfer rates. (Auto-negotiation). Just like any other product in the ADAM family, ADAM-6520 can bemounted in three different ways: DIN rail, Walland Stack. Solid industrial-grade design assuresreliable operation in common application areaslike:semi-conductor factories, inventory control environments, assembly lines, manufacturing and many more.
All modules support a wide voltage range of +10 ~ 30 VDC over the terminal block, and 3,000 VDC surge (EFT) protection ensures that over-voltage is no concern. The wide operating temperature of ADAM-6520 goes from -10 ~ 70°, while ADAM-6520I from -40 ~ 85°. This permits them to be functional in harsh environments.
The six inclusive LED indicators make troubleshooting of the modules easier. Each port has a pair of LEDs that indicate link status and port activities. This easily informs users of any collisions, the link status, power failure and data receipts for immediate on-site diagnosis.
All modules support a wide voltage range of +10 ~ 30 VDC over the terminal block, and 3,000 VDC surge (EFT) protection ensures that over-voltage is no concern. The wide operating temperature of ADAM-6520 goes from -10 ~ 70°, while ADAM-6520I from -40 ~ 85°. This permits them to be functional in harsh environments.
The six inclusive LED indicators make troubleshooting of the modules easier. Each port has a pair of LEDs that indicate link status and port activities. This easily informs users of any collisions, the link status, power failure and data receipts for immediate on-site diagnosis.
- Supports wide operating temperature range : -40 ~ 85° C (ADAM-6520I)
- Provides flexible mounting: DIN-rail, Wall, Stack
- Supports 4,000 VDC Ethernet ESD protection (ADAM-6520L not equipped)
- Provides surge (EFT) protection 3,000 V
- DC for power line (ADAM-6520L not equipped)
- Supports +10 ~ 30 VDC voltage power input
- Embedded with a switch controller, supports auto-negotiation
- Supports MDI/MDI-X auto crossover
- Supports full/half duplex flow control
